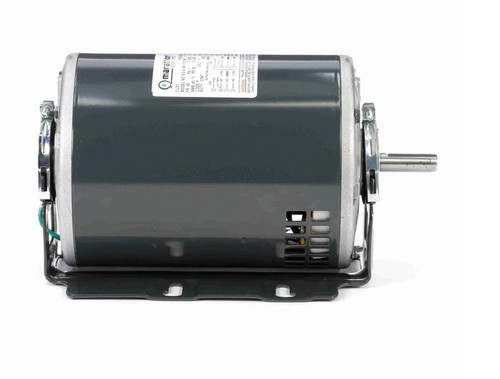

B402 Marathon 1/3 hp 2-speed 115V 1800/1200 RPM ODP 48 Frame (resilient base) Attic Fan Motor

SKU:: B402
UPC:
Weight:: 21.00 LBS
Width:: 7.00 (in)
Height:: 7.00 (in)
Depth:: 14.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM

Current Stock:

Was: $350.87

Now: $306.13

CURRENTLY OUT OF STOCK

Description
Literature
Compliance & Restrictions

B402 Marathon 1/3 hp 2-speed 115V 1800/1200 RPM ODP 48 Frame (Resilient Base) Attic Fan Motor

This Marathon attic fan motor is a reliable replacement designed for intermittent ventilation of attic spaces. It features a two-speed operation and is built to fit applications requiring a resilient base mount.

Key Specifications

Horsepower: 1/3 hp
RPM: 1800/1200
Voltage: 115 V
Amperage: 5.3/2.9 A
Enclosure: Open Drip Proof (ODP)
Frame / Diameter: NEMA 48 Frame
Shaft Dimensions: 1/2" diameter x 1 1/2" length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

The motor includes a resilient base for stable mounting and is designed with automatic thermal protection to prevent overheating. It features Class B insulation and a keyed shaft for secure coupling. This motor is suitable for attic fan applications requiring durable, intermittent operation.
