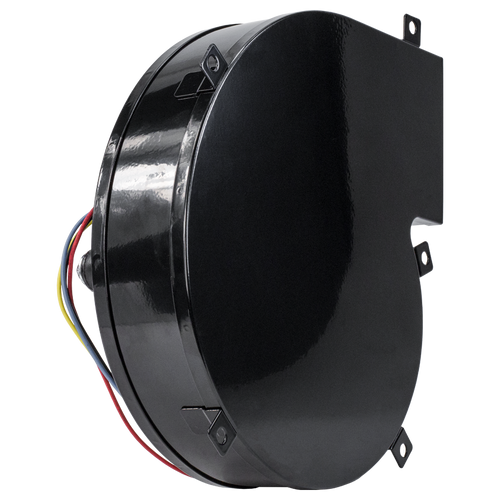

B47120 FASCO, 1TDR2 Dayton Direct OEM Aftermarket Replacement Blower

B47120 FASCO, 1TDR2 Dayton Direct OEM Aftermarket Replacement Blower

This replacement blower is designed as a direct OEM aftermarket substitute for FASCO B47120 and Dayton 1TDR2 models. It is suitable for use in various indoor and outdoor wood stoves, boilers, and fireplaces, providing reliable airflow performance.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1500
• Voltage: 115 Volts, 60 Hz
• Amperage: 0.71 amps
• Bearings: Ball Bearings

Product Features & Fitment

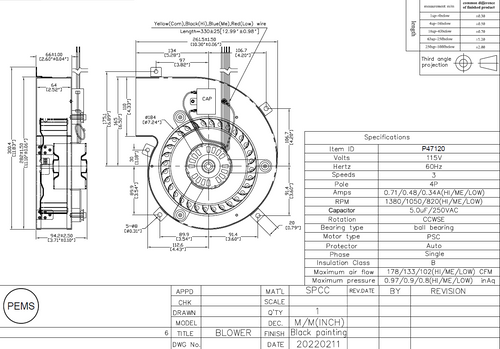

This blower features a PSC style motor for energy-efficient operation by reducing amperage and comes with a pre-installed run capacitor. It offers three-speed settings (High/Medium/Low) with nameplate CFM ratings of 178, 133, and 102 respectively. The outlet size measures approximately 4-1/4" x 2-5/8", and the wheel dimensions are 7-1/8" x 2-1/8". Wiring color codes are Common = White, High = Black, Medium = Blue, and Low = Red; note that applying power to two speeds simultaneously may damage the motor. This unit is not recommended for speed control applications.

Cross Reference

• Fasco B47120
• Fasco 7063-6207, 7063-5673, 7163-7576,7063-7576, 7063-6512
• 7063-7662, 7063-5986, 7063-5554 Appalachian Stove
• 7063-6596 Heatilator
• 7063-6568 Hutch Mfg
• 7063-8057 Martin Industries
• 7063-9465 Pacific Energy
• 7063-5996 Rockhill Metal

Warranty

1 Year Manufacturer Warranty
