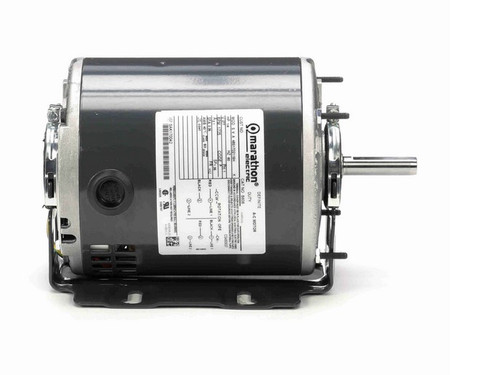

B606 Marathon 1/4 hp (1 speed) 277V 1800 RPM ODP 48Z Frame Resilient Base Blower Motor

B606 Marathon 1/4 hp (1 speed) 277V 1800 RPM ODP 48Z Frame Resilient Base Blower Motor

The B606 Marathon blower motor is a 1/4 horsepower, single-speed motor designed for air circulation applications in HVAC systems and building ventilation. It serves as a reliable replacement for blower motors requiring a 277V power supply and a 48Z frame configuration.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 277V
• Amperage: 2.1 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Z
• Shaft Dimensions: 1 7/8" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and reduced vibration during operation. It includes ball bearings for enhanced durability and smooth performance. The shaft orientation can be installed vertically or horizontally, accommodating various blower configurations. Thermal protection is not included, so appropriate external safeguards should be considered during installation.

Warranty

1 Year Manufacturer Warranty
