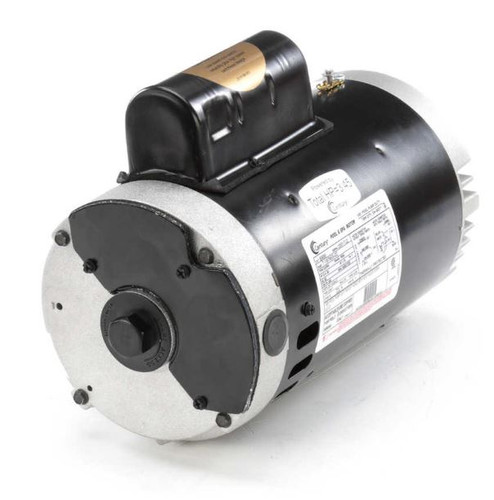

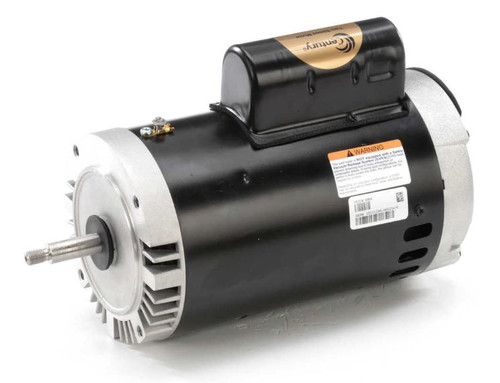

B966 Century 3 hp 2-Speed 56J Frame 230V; 2 Speed Swimming Pool Motor Century # B966
B966 Century 3 hp 2-Speed 56J Frame 230V; 2 Speed Swimming Pool Motor Century # B966
B966 Century 3 hp 2-Speed 56J Frame 230V; 2 Speed Swimming Pool Motor Century # B966
B966 Century 3 hp 2-Speed 56J Frame 230V; 2 Speed Swimming Pool Motor Century # B966
B966 Century 3 hp 2-Speed 56J Frame 230V; 2 Speed Swimming Pool Motor Century # B966
B966 Century 3 hp 2-Speed 56J Frame 230V; 2 Speed Swimming Pool Motor Century # B966

Century Electric Motor

B966 Century 3 hp 2-Speed 56J Frame 230V; 2 Speed Swimming Pool Motor Century # B966

(No reviews) Write a Review
$809.03
$685.63
SKU UB966
Shipping Free Shipping
Compliance Tab /content/product_tabs/california.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 3 HP
RPM 3450
Phase Single Phase
Frame 56J
Hertz 60 Hz
Amperage 13.8/4.0 Amps
Bearings Ball Bearings
Speeds 2-Speed
Service Factor 1.15
Rotation Counter-Clockwise
Adding to cart… The item has been added
Description

B966 Century 3 hp 2-Speed 56J Frame 230V Swimming Pool Motor

This Century 3 HP two-speed motor is designed for swimming pool pumps requiring a 56J frame replacement. It is commonly used with inground pool pumps such as Hayward Super Pump, Maxflo, and Super II models.

Key Specifications

  • Horsepower: 3 HP
  • RPM: 3450 / 1725 (High/Low Speed)
  • Voltage: 230 V
  • Amperage: 13.8 / 4.0 A
  • Enclosure: Open Drip Proof
  • Frame / Diameter: 56J Frame
  • Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
  • Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
  • Bearings: Ball Bearings

Product Features & Fitment

This energy-efficient two-speed pump motor features automatic overload protection and a high service factor of 1.15. It includes sealed ball bearings and a stainless steel shaft for durability. The motor has four threaded bolt holes on the face for mounting, spaced 5 7/8" on center across the shaft. Note that this motor does not include a power cord or high/low toggle switch. Wiring diagrams are provided on the motor nameplate for easy installation. Ensure compliance with local and state energy regulations before replacement.

Warranty

Warranty Information
Specifications
Compliance Tab /content/product_tabs/california.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 3 HP
RPM 3450
Phase Single Phase
Frame 56J
Hertz 60 Hz
Amperage 13.8/4.0 Amps
Bearings Ball Bearings
Speeds 2-Speed
Service Factor 1.15
Rotation Counter-Clockwise
!
