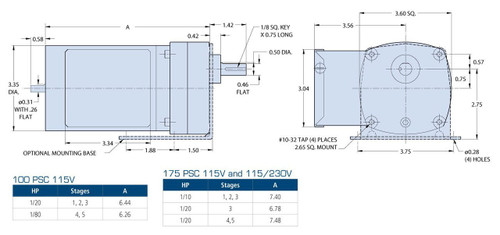

Bison Model 016-102-0186 Gear Motor 1/80 hp 8.8 RPM 115V 60/50HZ.

Part #
Bison Gear Motors
10.00 LBS
Calculated at checkout
$280.81 RRP:


  • 100 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 76 inch pounds; Over Hung lbs. = 85
  • Rotation = Reversible; Junction Box Included
  • 1/80 hp 8.8 RPM, .30 amps, 115 VAC
  • OPD Enclosure, Keyed Shaft, Ball Bearings

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty. Dayton equivilient 6Z076, Baldor equivilent GCP24114.
