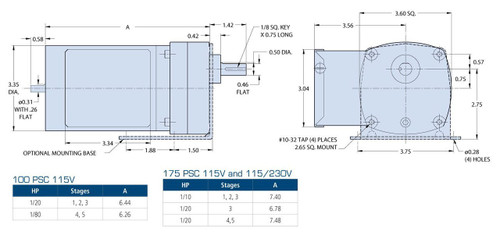

Bison 016-175-0007 Gear Motor 1/10 hp 240 RPM 115V 60/50HZ.
Bison 016-175-0007 Gear Motor 1/10 hp 240 RPM 115V 60/50HZ.
Bison 016-175-0007 Gear Motor 1/10 hp 240 RPM 115V 60/50HZ.
Bison 016-175-0007 Gear Motor 1/10 hp 240 RPM 115V 60/50HZ.
Bison 016-175-0007 Gear Motor 1/10 hp 240 RPM 115V 60/50HZ.
Bison 016-175-0007 Gear Motor 1/10 hp 240 RPM 115V 60/50HZ.

Bison Gear Motors

Bison 016-175-0007 Gear Motor 1/10 hp 240 RPM 115V 60/50HZ.

(No reviews) Write a Review
$893.18
$714.54
SKU 016-175-0007
UPC 8.45E+11
Availability Bison is requiring minimum qty purchases, with a lead time of 12 weeks to manufacture the motors.
Minimum Purchase: 10 units
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
Confirmations All purchases understand the lead time requirements, we will not be sending out update emails.
Voltage 115V
Horsepower 1/10 HP
RPM 240
Hertz 60/50 Hz
Amperage 1.05 Amps
Bearings Ball Bearings
Adding to cart… The item has been added
Description
  • 175 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 25 inch pounds; Over Hung lbs. = 200
  • Rotation = Reversible; Junction Box Included
  • 1/10 hp 240 RPM, 1.05 amps, 115 VAC
  • OPD Enclosure, Keyed Shaft, Ball Bearings

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty.

Warranty Information
Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Confirmations All purchases understand the lead time requirements, we will not be sending out update emails.
Voltage 115V
Horsepower 1/10 HP
RPM 240
Hertz 60/50 Hz
Amperage 1.05 Amps
Bearings Ball Bearings
!
