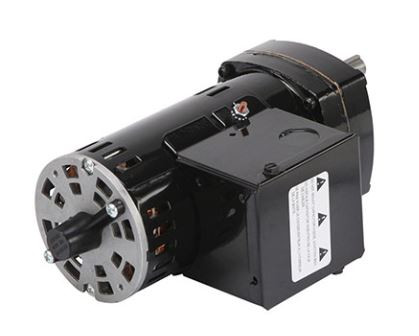

Bison 016-175-0049 Gear Motor 1/10 hp 33 RPM 115V 60/50HZ.

Bison is projecting a 12 week lead time for this product
10.00 LBS
Free Shipping
  • 175 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 165 inch pounds; Over Hung lbs. = 130
  • Rotation = Reversible; Junction Box Included
  • 1/10 hp 33 RPM, 1.05 amps, 115 VAC
  • OPD Enclosure, Keyed Shaft, Ball Bearings

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty.
