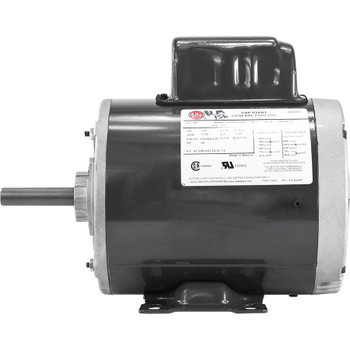

BLM156 PEMS 3/4 HP General Purpose Motor, Boat lift motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, TENV

BLM156 PEMS 3/4 HP General Purpose Motor, Boat Lift Motor

The BLM156 PEMS is a 3/4 HP, single-phase general purpose motor designed primarily for boat lift applications. It serves as a reliable replacement motor featuring a 56 frame and a totally enclosed non-ventilated (TENV) design for intermittent duty.

Key Specifications

• Horsepower: 3/4 HP
• RPM: 1725 / 1800 RPM
• Voltage: 115/230 V
• Amperage: 12.4 / 6.2 Amps
• Enclosure: TENV (Totally Enclosed Non-Ventilated)
• Frame / Diameter: 56 Frame
• Shaft Dimensions: 5/8" Diameter x 2 1/2" Length
• Rotation: Reversing
• Motor Length: 11.42" (including shaft)
• Type: PSC Motor

Product Features & Fitment

This motor is designed for intermittent duty and does not include an automatic protector. Its reversing rotation capability makes it suitable for applications requiring bidirectional operation. The 56 frame size and shaft dimensions allow for straightforward mounting in standard boat lift motor assemblies.

Warranty

1 Year Manufacturer Warranty
