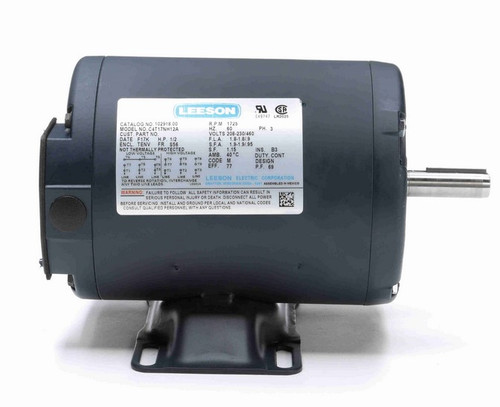

102918.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56 Frame TENV (with Base) 3-Phase Motor

102918.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56 Frame TENV (with Base) 3-Phase Motor

This Leeson 3-phase motor delivers 1/2 horsepower at 1800 RPM and is designed for general-purpose industrial applications requiring a rigid base mount. It is suitable as a replacement motor for equipment operating on 208-230/460V power supplies.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 1.8-1.8/0.9 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings, Class B Insulation

Product Features & Fitment

The motor features a rigid base for secure mounting and includes a flat shaft compatible with standard industrial equipment. It does not include overload protection and is equipped with a wiring diagram on the nameplate for easy installation. The ball bearing design ensures reliable operation under various load conditions.

Warranty

1 Year Manufacturer Warranty
