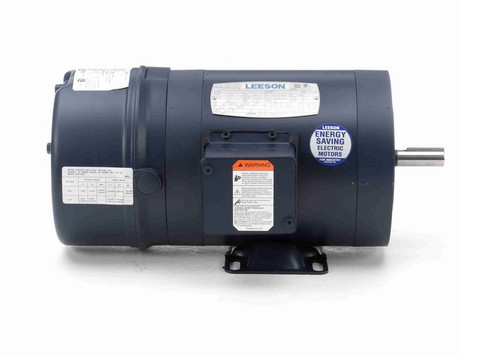

110670.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame (Rigid Base) TENV 3-Phase Brake Motor

110670.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame (Rigid Base) TENV 3-Phase Brake Motor

This Leeson 3-phase brake motor delivers reliable 1/2 horsepower performance at 1800 RPM, designed for industrial applications requiring controlled stopping. It is a direct replacement motor featuring a rigid base and a totally-enclosed non-ventilated (TENV) design for enhanced durability in demanding environments.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 2.0-1.8/0.9 A
• Enclosure: Totally-Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 5/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This brake motor features a C-face mount with the brake engaged when power is off, providing controlled stopping for safety and precision. The rigid base mounting includes bolt holes spaced 3 3/4" on center across the shaft for straightforward installation. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
