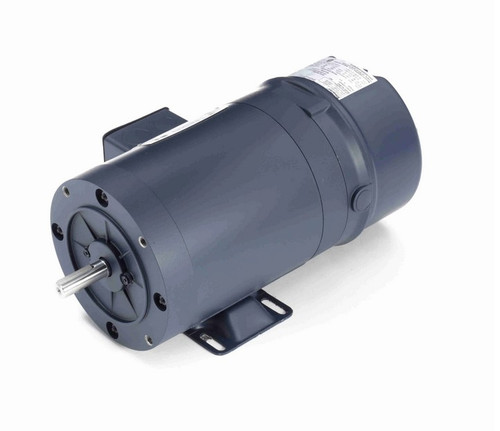

110671.00 Leeson 3/4 hp 1800 RPM 208-230/460V 56C Frame (Rigid Base) TENV 3-Phase Brake Motor
(No reviews)
Write a Review
Write a Review
Leeson
110671.00 Leeson 3/4 hp 1800 RPM 208-230/460V 56C Frame (Rigid Base) TENV 3-Phase Brake Motor
$1,263.85
$1,071.46
SKU
110671
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
3/4 HP
RPM
1800
Phase
Three Phase
Frame
56C
Enclosure
TENV
Hertz
60 Hz
Amperage
2.5/1.3 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
110671.00 Leeson 3/4 hp 1800 RPM 208-230/460V 56C Frame (Rigid Base) TENV 3-Phase Brake Motor
This Leeson 3/4 horsepower, 3-phase brake motor is designed for industrial applications requiring reliable braking and consistent performance. It replaces standard motors in systems needing a brake function with a rigid base mounting and is suitable for use in various machinery and equipment.
Key Specifications
- Horsepower: 3/4 hp
- RPM: 1800
- Voltage: 208-230/460 V
- Amperage: 2.7-2.5/1.3 A
- Enclosure: Totally-Enclosed Non-Ventilated (TENV)
- Frame / Diameter: NEMA 56C Frame
- Shaft Dimensions: 5/8" Diameter x 1 5/8" Length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This brake motor features a rigid base with a C-face mount and includes a brake that engages when power is off, enhancing safety and control. The bolt holes are spaced 3 3/4" on center across the shaft, facilitating straightforward installation. A wiring diagram is provided on the motor nameplate for ease of electrical connection.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 3/4 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TENV |
| Hertz | 60 Hz |
| Amperage | 2.5/1.3 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
