BMU3P2D Nidec 3 hp 1800 RPM 182T (Rigid Base) 208-230/460V TEFC 3-Phase BrakeMotor

BMU3P2D Nidec 3 hp 1800 RPM 182T (Rigid Base) 208-230/460V TEFC 3-Phase BrakeMotor

SKU:
BMU3P2D
Weight:
70.00 LBS
Width:
24.00 (in)
Height:
13.00 (in)
Depth:
15.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
208/230/460V
Horsepower:
3 HP
RPM:
1800
Phase:
Three Phase
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
7.8/3.9 Amps
Bearings:
Ball Bearings
Service Factor:
1.25
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $2,648.45
Now: $2,364.52
Adding to cart… The item has been added
  • 3 hp 1800 RPM, 8.4-7.8/3.9 amps 208-230/460 Volts 60 Hz Three Phase Motor

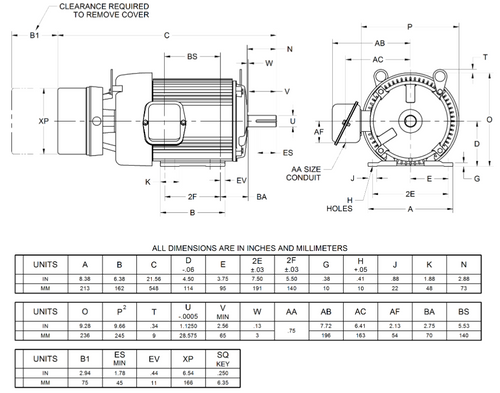

  • NEMA 182T Aluminum Frame, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.25 Overload protection = None
  • Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

For use on conveyors, machine tools, doors and any application requiring quick stops. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. FR12

!
