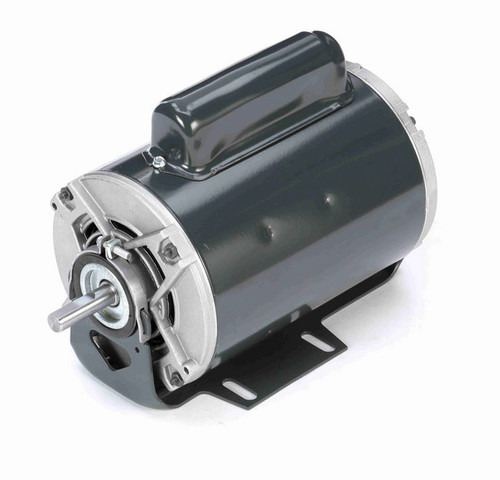

C1152 Marathon 1/2 hp (1 speed) 115/208-230V 3600 RPM ODP 48 Frame Cap Start Resilient Base Motor

C1152 Marathon 1/2 hp (1 speed) 115/208-230V 3600 RPM ODP 48 Frame Cap Start Resilient Base Motor

This Marathon 1/2 horsepower motor is designed for HVAC blower applications, providing reliable air movement inside buildings. It serves as a direct replacement for similar 1-speed motors requiring a capacitor start and resilient base mounting.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 3600
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 8.2/3.9-4.1 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start design with a service factor of 1.25 and automatic thermal protection for enhanced durability. It is mounted on a resilient base for vibration reduction and supports both vertical and horizontal shaft orientations. The flat shaft and NEMA 48 frame ensure compatibility with a wide range of blower assemblies.

Warranty

1 Year Manufacturer Warranty
