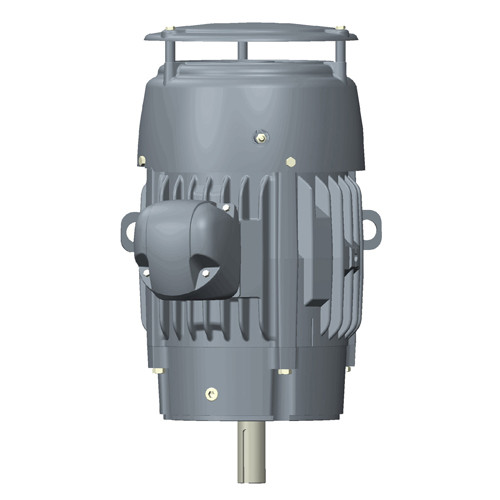

C25P2FCR Nidec 25 hp 1800 RPM 284TC Frame (Vertical) 460V TEFC 3-Phase C-Face Motor
C25P2FCR Nidec 25 hp 1800 RPM 284TC Frame (Vertical) 460V TEFC 3-Phase C-Face Motor
C25P2FCR Nidec 25 hp 1800 RPM 284TC Frame (Vertical) 460V TEFC 3-Phase C-Face Motor
C25P2FCR Nidec 25 hp 1800 RPM 284TC Frame (Vertical) 460V TEFC 3-Phase C-Face Motor

Nidec

C25P2FCR Nidec 25 hp 1800 RPM 284TC Frame (Vertical) 460V TEFC 3-Phase C-Face Motor

(No reviews) Write a Review
$3,063.60
$2,735.16
SKU C25P2FCR
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 25 HP
RPM 1800
Phase Three Phase
Frame 284TC
Enclosure TEFC
Hertz 50/60 Hz
Amperage 29.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 25 hp 1800 RPM, 29.1 amps 460 Volts 50/60 Hz Three Phase Motor
  • NEMA 284TC cast iron frame, Keyed Shaft 1 7/8" Diameter x 4 5/8"
  • Service Factor: 1.15, Overload protection = None
  • Vertical C-Face Mount, Regreasable Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Three phase motor designed for chemically corrosive environments with either 50 or 60 Hz power. Inverter Duty. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DW83

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 25 HP
RPM 1800
Phase Three Phase
Frame 284TC
Enclosure TEFC
Hertz 50/60 Hz
Amperage 29.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Duty Inverter Duty
!
