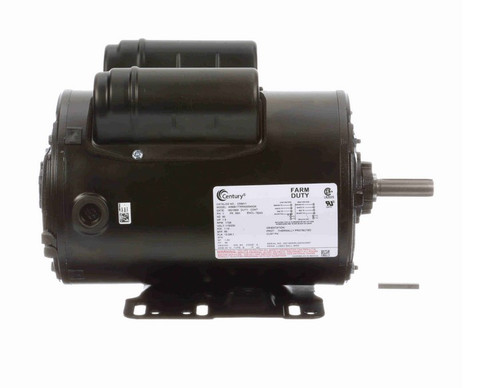

C594V1 Century 1 1/2 HP 1800 RPM 56H Frame 115/230V TEAO Cow Cooler Motor

C594V1 Century 1 1/2 HP 1800 RPM 56H Frame 115/230V TEAO Cow Cooler Motor

This single-phase motor is designed for belt-driven fans commonly used in farm buildings. It serves as a reliable replacement motor with a Totally-Enclosed Air-Over (TEAO) design, requiring installation within an air stream for optimal cooling.

Key Specifications

• Horsepower: 1 1/2 HP
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 12.2/6.1 A
• Enclosure: Totally-Enclosed Air-Over (TEAO)
• Frame / Diameter: NEMA 56H Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a capacitor start and capacitor run phase design with an automatic overload protection system. It includes a rigid base for stable mounting and is engineered with Class B insulation for durability. The TEAO enclosure requires the motor to be mounted in an air stream to ensure proper cooling during operation.

Warranty

1 Year Manufacturer Warranty
