CHT10V2BLE Nidec 10 hp 1800 RPM 230/460V 3-phase 215TP Frame TEFC Holloshaft CORRO-DUTY Motor

CHT10V2BLE Nidec 10 hp 1800 RPM 230/460V 3-phase 215TP Frame TEFC Holloshaft CORRO-DUTY Motor

This Nidec 10 HP vertical pump motor is designed for turbine, mix flow, and propeller pump applications. It features a robust all cast iron CORRO-DUTY construction and is suitable for inverter duty operation, providing reliable performance in demanding environments.

Key Specifications

• Horsepower: 10 HP
• RPM: 1800
• Voltage: 230/460V, 3 Phase, 60 Hz
• Amperage: 24.3/12.2 amps
• Enclosure: Totally-Enclosed Fan-Cooled (TEFC), Weather Protected

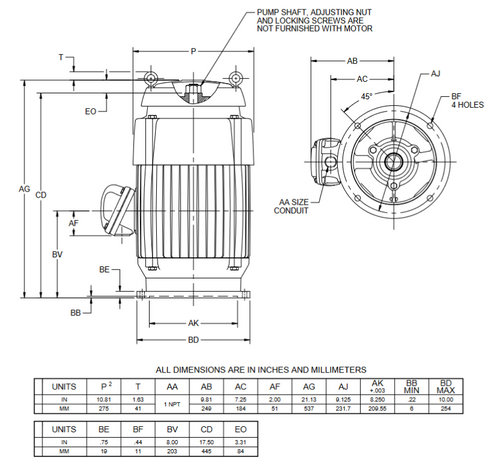

• Frame / Diameter: NEMA 215TP Frame, 10" Diameter Base
• Shaft Dimensions: 1" Diameter, 1/4" Keyway, Height 17 1/2"
• Rotation: Non-Reversible Ratchet
• Bearings: Ball Bearings, High Thrust

Product Features & Fitment

This motor mounts on a P-base and includes a non-reversible ratchet coupler for secure shaft connection. It utilizes Class H insulation and operates with a 1.15 service factor. The motor is designed without thermal protection and is optimized for vertical pump installations requiring a hollow shaft configuration.

Warranty

1 Year Manufacturer Warranty
