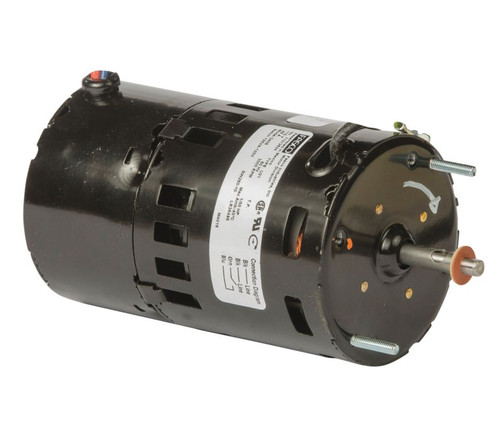

The Fasco D408 is a 1/150 horsepower inducer motor designed for HVAC applications, serving as a suggested replacement for various AO Smith and Century models. It is ideal for use in Coleman systems requiring a compact, reliable motor with clockwise shaft rotation.

Key Specifications

• Horsepower: 1/150 hp
• RPM: 3000
• Voltage: 115V
• Amperage: 0.50 Amps
• Rotation: Clockwise (CWSE)
• Shaft Dimensions: 1/4" diameter x 1 1/2" length
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features two mounting studs on the shaft end and mounts via threaded holes with a bolt circle diameter of 2.85". The motor length, excluding the shaft, measures 5 1/2". It includes a centrifugal switch located at the back end and comes with 20" leads for easy electrical connection. A shaft bushing sized 1/4" x 5/16" is supplied to ensure proper fitment. Note that the shaft length on the D408 is shorter compared to some AO Smith/Century replacements. Suggested replacement references include models such as 7995-316, 7121-5906, and Dayton 48GN94 among others.

Cross Reference

• 7995-316, 7121-5906, 7700-3149, 8670-3149, 8865-3149, AAIEO97,AA1E097, 002114F02AF03408874, 002114FO2AF3409974, 21RT6AF-A4479, 7121-2819, 7121-2842, 7121-2882, H00119242, AA1C155, AA1E097, JA1C067, JA1C634. Dayton 48GN94

Warranty

1 Year Manufacturer Warranty
