FC1106F Century Condenser Fan Motor 5 5/8" Dia, 1 hp, 1075 RPM 200-230/460V Single Phase Century # FC1106F

FC1106F Century Condenser Fan Motor 5 5/8" Dia, 1 hp, 1075 RPM 200-230/460V Single Phase

The FC1106F is a 1 horsepower condenser fan motor designed for HVAC applications, offering reliable performance at 1075 RPM. It serves as a direct replacement for Century FC1106 and is a suggested upgrade for F48J09B65, providing a slightly longer motor length for improved fitment.

Key Specifications

• Horsepower: 1 hp
• RPM: 1075
• Voltage: 200-230/460 V
• Amperage: 6.4/3.2 A
• Frame / Diameter: 5 5/8" Dia
• Shaft Dimensions: 5/8" diameter x 4.07" length with double flat
• Bearings: Ball Bearings

Product Features & Fitment

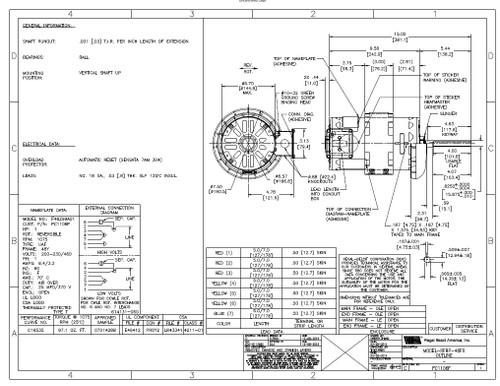

This motor requires a 25 MFD 370V capacitor (Century Part #25DV) for proper operation. The motor length excluding the shaft is 9.56 inches. Note that the original F48J09B65 motor is shorter than this replacement, so verify fitment before installation.

Cross Reference

• FC1106, suggested replacement for F48J09B65 (original motor is shorter then this replacement, check for fit)

Warranty

1 Year Manufacturer Warranty
