FC1066AF Century Condenser Fan Motor 5 5/8" Dia .6 hp, 1075 RPM 200-230/460V Single Phase Century # FC1066A

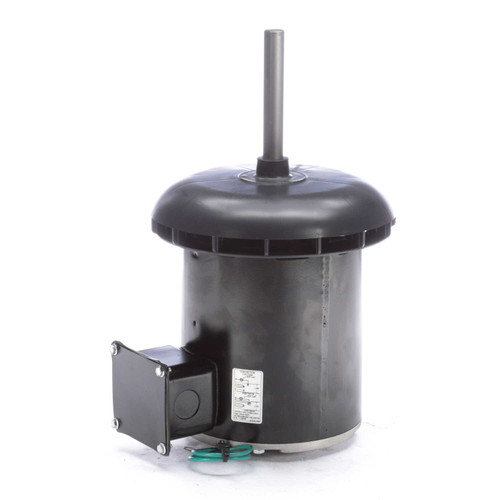

FC1066AF Century Condenser Fan Motor

The FC1066AF is a reliable condenser fan motor designed to replace Century model FC1066A. It is ideal for HVAC applications requiring efficient and consistent airflow in condenser units.

Key Specifications

• Horsepower: 0.6 hp
• RPM: 1075
• Voltage: 200-230/460V
• Amperage: 4.0/2.0 amps
• Frame / Diameter: 5 5/8" diameter
• Shaft Dimensions: 5/8" diameter x 3.57" length with flat and keyway
• Bearings: Ball bearings

Product Features & Fitment

This motor features a conduit box for easy wiring connections and requires a 7.5 MFD 370V capacitor (sold separately, part #7.5DV) for proper operation. The motor length excluding the shaft measures 6.94 inches, facilitating straightforward installation in compatible condenser fan assemblies.

Warranty

1 Year Manufacturer Warranty
