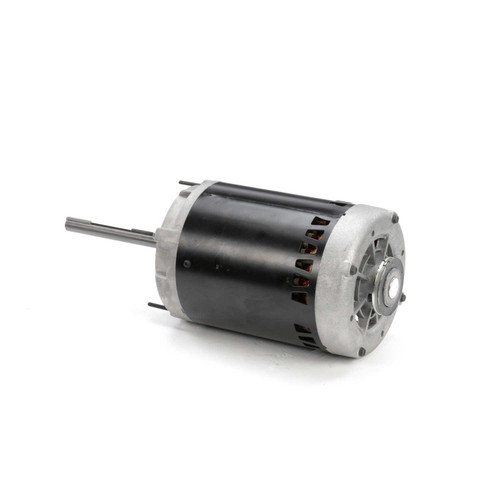

C784 Century Condenser Fan Motor 6 1/2" Dia, 1/2 hp, 850 RPM 115/208-230V Single Phase Century # C784

SKU:: C784
UPC:
Weight:: 36.00 LBS
Width:: 12.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/208/230V
Horsepower:: 1/2 HP
RPM:: 850
Phase:: Single Phase
Amperage:: 3.3 Amps
Bearings:: Ball Bearings

Current Stock:

Was: $686.67

Now: $581.90

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

Century Condenser Fan Motor C784 (6 1/2" Dia, 1/2 hp, 850 RPM, 115/208-230V Single Phase)

This Century condenser fan motor is designed to replace OEM motors in HVAC condenser units, providing reliable performance for efficient cooling. It is compatible with Century model C784 and Dayton 4MA39 applications.

Key Specifications

Horsepower: 1/2 hp
RPM: 850
Voltage: 115/208-230V
Amperage: 6.6/4.0-3.3 amps
Frame / Diameter: 6 1/2" diameter
Shaft Dimensions: 5/8" diameter x 6" length
Bearings: Ball bearings

Product Features & Fitment

The motor features a 10.75" case length with a ring-to-ring dimension of 10.30" and includes resilient mounting rings for vibration reduction. A 15 MFD 370V capacitor (Part #15DV) is required for proper operation. It is rated for use in ambient temperatures up to 60°C.
