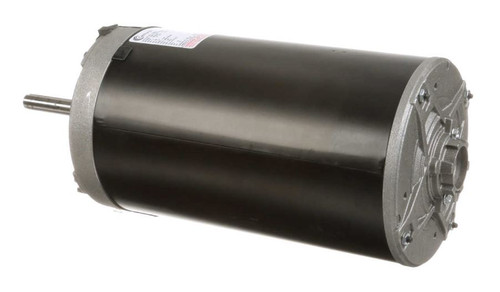

H698 Century Condenser Fan Motor 6 1/2" Dia, 2 hp, 1140 RPM 460/200-230V Three Phase Century # H698

H698 Century Condenser Fan Motor 6 1/2" Dia, 2 hp, 1140 RPM 460/200-230V Three Phase

The H698 Century Condenser Fan Motor is a reliable replacement motor designed for HVAC condenser fan applications. It replaces Century/AO Smith model H698, delivering consistent performance in commercial and industrial environments.

Key Specifications

• Horsepower: 2 hp
• RPM: 1140
• Voltage: 460/200-230V
• Amperage: 3.1/6.1-6.2 amps

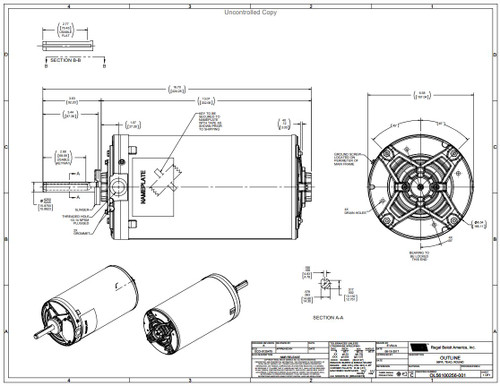

• Frame / Diameter: 6 1/2" diameter
• Shaft Dimensions: 5/8" x 3.44"

Product Features & Fitment

This motor features an automatic reset thermal protector to prevent overheating and ensure safe operation. Permanently lubricated, double-sealed bearings extend motor life and reduce maintenance needs. It supports both vertical and horizontal mounting orientations, allowing flexible installation to optimize fan placement within the airflow. The motor is rated for ambient temperatures up to 70°C, suitable for a variety of environmental conditions.

Cross Reference

• Century/AO Smith H698

Warranty

1 Year Manufacturer Warranty
