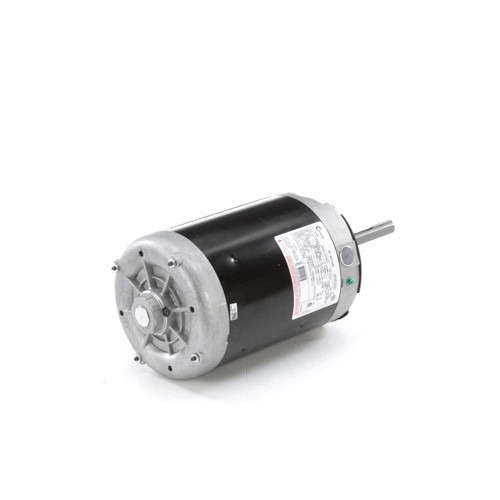

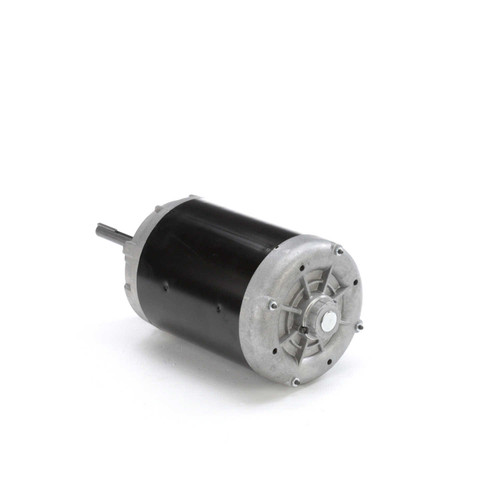

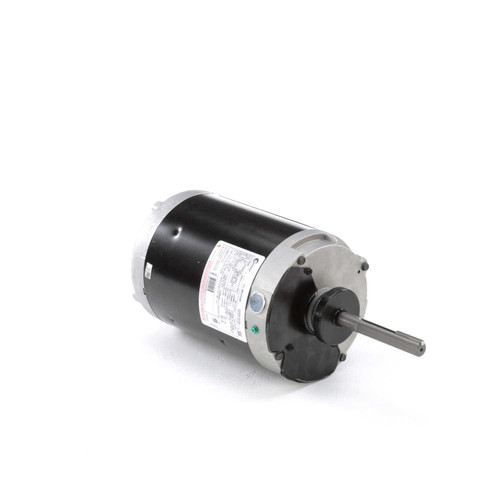

H696V1 Century Condenser Fan Motor 6 1/2" Dia, 1 hp, 1140 RPM 460/200-230V Three Phase

H696V1 Century Condenser Fan Motor 6 1/2" Dia, 1 hp, 1140 RPM 460/200-230V Three Phase

The H696V1 Century Condenser Fan Motor is a reliable replacement motor designed for HVAC condenser fan applications. It is compatible with AO Smith/Century H696 models, ensuring seamless integration and optimal performance in three-phase systems.

Key Specifications

• Horsepower: 1 hp
• RPM: 1140
• Voltage: 460/200-230 V
• Amperage: 2.6/5.3-5.2 A
• Enclosure: Totally Enclosed Air Over
• Frame / Diameter: 6 1/2" diameter
• Shaft Dimensions: 5/8" diameter x 4.88" length
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a 1.15 service factor and is rated for operation in ambient temperatures up to 70°C. Its total enclosed air over design provides enhanced protection and cooling, making it suitable for demanding condenser fan environments. The shaft length and diameter are optimized for direct replacement, facilitating straightforward installation without modification.

Cross Reference

• AO Smith/Century H696

Warranty

1 Year Manufacturer Warranty
