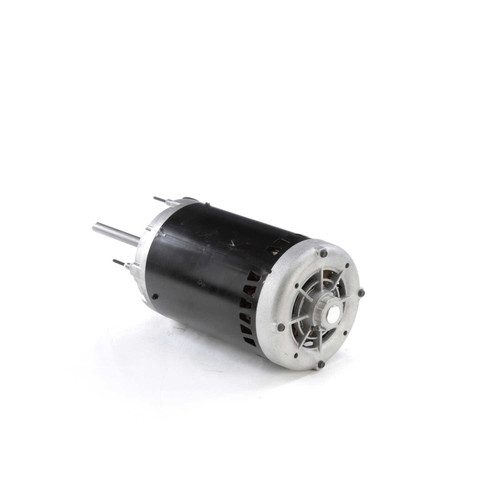

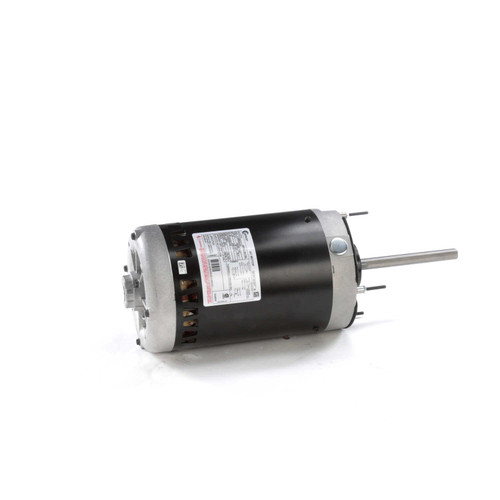

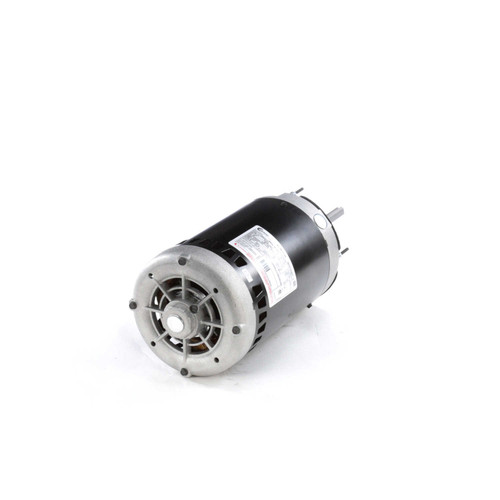

C771 Century Condenser Fan Motor 6 1/2" Dia, 1.5 hp, 1075 RPM 200-230/460V Single Phase Century # C771

C771 Century Condenser Fan Motor 6 1/2" Dia, 1.5 hp, 1075 RPM 200-230/460V Single Phase

This Century condenser fan motor is designed to replace original equipment in HVAC systems, providing reliable performance for condenser fan applications. It is suitable for single-phase power supplies and built to meet industrial standards.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1075
• Voltage: 200-230/460V
• Amperage: 3.3/6.6 amps
• Frame / Diameter: 6 1/2" diameter
• Shaft Dimensions: 5/8" x 6"
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a 12.06" long case and requires a 25 MFD 370V capacitor (sold separately, Part #25DV) for proper operation. It is rated for use in ambient temperatures up to 60°C and is compatible with Dayton model 48Y613.

Warranty

1 Year Manufacturer Warranty
