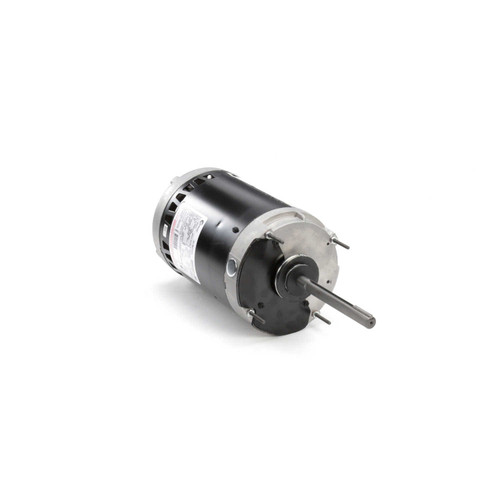

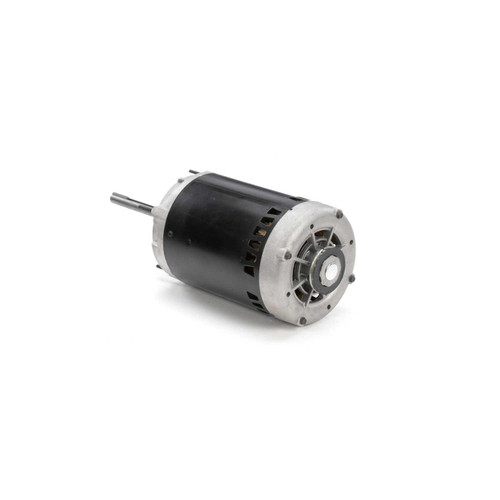

C660V1 Century Condenser Fan Motor 6 1/2" Dia, 3/4 hp, 825 RPM 200-230/460V Single Phase Century # C660V1

C660V1 Century Condenser Fan Motor 6 1/2" Dia, 3/4 hp, 825 RPM 200-230/460V Single Phase

This Century condenser fan motor is designed to replace OEM motors in HVAC condenser units, providing reliable performance for efficient cooling. It is suitable for applications requiring a 3/4 horsepower motor with a 6 1/2" diameter frame.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 825
• Voltage: 200-230/460V
• Amperage: 2.6/5.3-5.2 amps
• Frame / Diameter: 6 1/2" diameter
• Shaft Dimensions: 5/8" x 6"
• Bearings: Ball bearings

Product Features & Fitment

The motor features a motor case length of 11.31" and a ring-to-ring dimension of 10.81". It includes resilient mounting rings for vibration reduction during operation. A 15 MFD 370V capacitor (Century part #15DV) is required for proper motor function. This motor is rated for operation in ambient temperatures up to 60°C.

Warranty

1 Year Manufacturer Warranty
