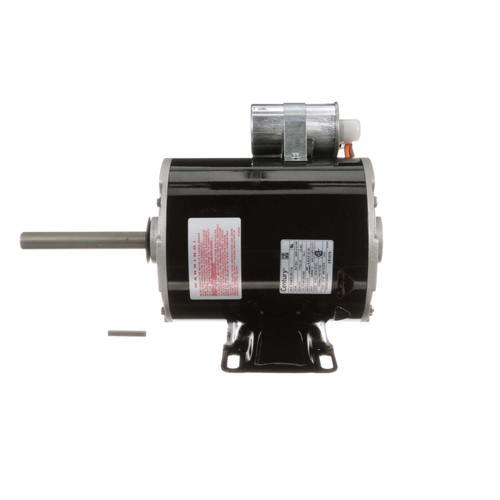

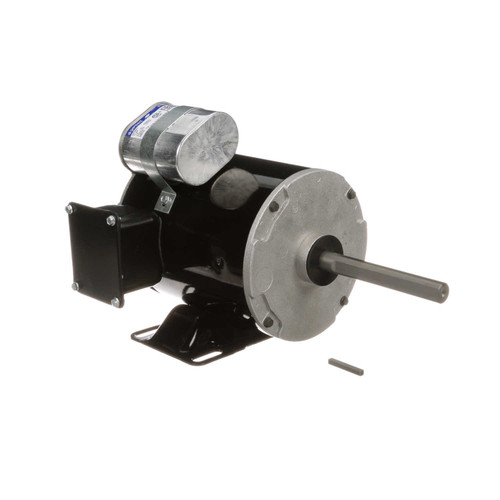

FR1076 Century Condenser Fan Motor Single Phase - Resilient Base 3/4 hp 1075 RPM 208-230/460V Century FR1076
Write a Review
Century Electric Motor
FR1076 Century Condenser Fan Motor Single Phase - Resilient Base 3/4 hp 1075 RPM 208-230/460V Century FR1076
FR1076 Century Condenser Fan Motor Single Phase - Resilient Base 3/4 hp 1075 RPM 208-230/460V Century FR1076
This Century condenser fan motor is designed for HVAC applications, providing reliable performance as a direct replacement for compatible units. It supports single-phase power and is ideal for use in residential and commercial condenser fan assemblies.
Key Specifications
- Horsepower: 3/4 hp
- RPM: 1075
- Voltage: 208-230/460V
- Amperage: 5.2/2.6 amps
- Shaft Dimensions: 1/2" x 4 1/2" with flat & keyway
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a resilient base for secure mounting and is rated for operation in ambient temperatures up to 60°C. It includes a permanent split capacitor with the capacitor supplied, facilitating straightforward installation. The motor length measures 7.31 inches, ensuring compatibility with standard condenser fan assemblies.
Warranty
1 Year Manufacturer Warranty
| Voltage | 208/230/460V |
|---|---|
| Horsepower | 3/4 HP |
| RPM | 1075 |
| Phase | Single Phase |
| Amperage | 5.2/2.6 Amps |
| Bearings | Ball Bearings |
F48SU6V14 X432 5KCP48TN9625 (shaft is 5/8 inch, original is 1/2 inch) IF REPLACING 5KCP48TN9625: Need to purchase the adapter that is needed. Refer to part #8539-6005
