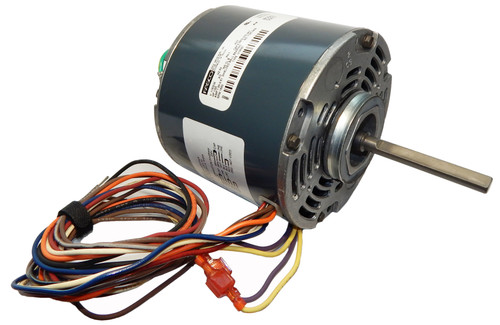

D0610 | Fasco 1/20 hp 1550 RPM GE 21/29 Frame CCW 115/230V

D0610 | Fasco 1/20 hp 1550 RPM GE 21/29 Frame CCW 115/230V

This Fasco motor is a reliable replacement for GE 21/29 frame size motors, designed primarily for refrigeration, unit heaters, and space heater applications. It delivers 1/20 horsepower with a single-speed 1550 RPM operation and reversible rotation.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1550
• Voltage: 115/230V, 60Hz
• Amperage: 1.0/0.51 amps
• Frame / Diameter: GE 21/29 Frame, 5" diameter
• Shaft Dimensions: 3/8" diameter x 3.25" length
• Rotation: Reversible (CCW)
• Bearings: Ball bearing
• Enclosure: Open Air Over

Product Features & Fitment

This motor features a permanent split capacitor (PSC) design and requires a 5 MFD 370VAC capacitor (Fasco Part #5DV) for operation. It is thermally protected and built with Class B insulation rated for 40°C ambient temperature. The motor case length measures 4.25" and includes 30" leads exiting on the shaft end. Mounting options include a resilient ring and four tapped 10-32 holes for shaft end mounting. Suggested replacement references include Century/AO Smith 611, DA2D044N, DA2D044, and GE 2331 & 2332 models.

Cross Reference

• Century/AO Smith 611, DA2D044N, DA2D044
• GE 2331 & 2332
