D0608 | Fasco 1/10 hp 1050 RPM GE 21/29 Frame 115/230V

D0608 | Fasco 1/10 hp 1050 RPM GE 21/29 Frame 115/230V

This Fasco motor is a 1/10 horsepower, 1050 RPM single-speed motor designed for refrigeration, unit heaters, and space heater applications. It serves as a direct replacement for GE 21/29 frame size motors and compatible models from Century/AO Smith and GE.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1050
• Voltage: 115/230V, 60Hz
• Amperage: 2.4/1.3 amps

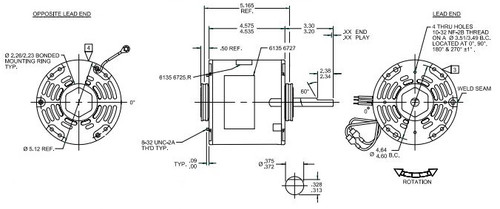

• Frame / Diameter: GE 21/29 Frame, 5" diameter
• Shaft Dimensions: 3/8" diameter x 3.25" length
• Rotation: Reversible
• Bearings: Ball Bearing
• Enclosure: Open Air Over
• Insulation Class: B (40°C Ambient)

Product Features & Fitment

This motor features a 4.5" motor case length and includes 30" leads exiting on the shaft end for easy wiring. It requires a 5 MFD 370VAC capacitor (Fasco Part #5DV) for operation and is thermally protected for safe use. Mounting options include a resilient ring and four tapped 10-32 holes for shaft end mounting, ensuring secure installation in compatible equipment.

Cross Reference

• Century/AO Smith 609, DA3F144N, DA3F144
• GE 2113
