D10P1DC Nidec 10 hp 3600 RPM 213TC Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor
D10P1DC Nidec 10 hp 3600 RPM 213TC Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor
D10P1DC Nidec 10 hp 3600 RPM 213TC Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor
D10P1DC Nidec 10 hp 3600 RPM 213TC Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor

Nidec

D10P1DC Nidec 10 hp 3600 RPM 213TC Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor

(No reviews) Write a Review
$997.05
$890.45
SKU D10P1DC
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 10 HP
RPM 3600
Phase Three Phase
Frame 213TC
Enclosure ODP
Hertz 50/60 Hz
Amperage 24.3/12.2 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 10 hp 3600 RPM, 27.1-24.3/12.2 amps 208-230/460 Volts 50/60 Hz Three Phase Motor

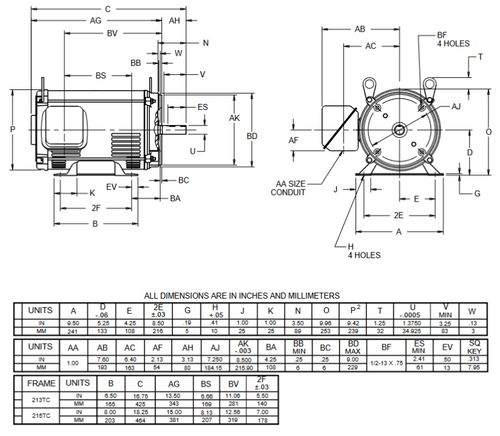

  • NEMA 213TC frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C-Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof. DB43

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 10 HP
RPM 3600
Phase Three Phase
Frame 213TC
Enclosure ODP
Hertz 50/60 Hz
Amperage 24.3/12.2 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
