D12ARM2N9 Nidec 1/2 hp 1800 RPM 115V 56 Frame (Resilient Base) ODP 1-Phase Gate Opener Motor
D12ARM2N9 Nidec 1/2 hp 1800 RPM 115V 56 Frame (Resilient Base) ODP 1-Phase Gate Opener Motor
D12ARM2N9 Nidec 1/2 hp 1800 RPM 115V 56 Frame (Resilient Base) ODP 1-Phase Gate Opener Motor
D12ARM2N9 Nidec 1/2 hp 1800 RPM 115V 56 Frame (Resilient Base) ODP 1-Phase Gate Opener Motor

Nidec

D12ARM2N9 Nidec 1/2 hp 1800 RPM 115V 56 Frame (Resilient Base) ODP 1-Phase Gate Opener Motor

(No reviews) Write a Review
$663.55
$592.37
SKU D12ARM2N9
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 50/60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 5.0 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Resilient
Duty intermittent duty
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 5.0 amps 115 Volts 50/60 Hz PSC Motor
  • NEMA 56 Frame, Keyed Shaft 5/8" Diameter x 1 7/8" Long
  • Service Factor: 1.0, Overload protection = Manual
  • Resilient Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

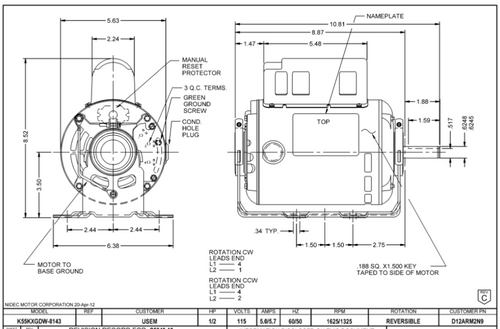

Motor designed for intermittent duty with gate openers. Wiring diagram on motor name plate. ODP = Open Drip Proof. K055GDW8143015H

Specifications
Voltage 115V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 50/60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 5.0 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Resilient
Duty intermittent duty
!
