D13B10N49 Nidec 1/3 hp 1800/1200 RPM 2-Speed 48 Frame (Resilient Base) 115V ODP Blower Motor
D13B10N49 Nidec 1/3 hp 1800/1200 RPM 2-Speed 48 Frame (Resilient Base) 115V ODP Blower Motor
D13B10N49 Nidec 1/3 hp 1800/1200 RPM 2-Speed 48 Frame (Resilient Base) 115V ODP Blower Motor
D13B10N49 Nidec 1/3 hp 1800/1200 RPM 2-Speed 48 Frame (Resilient Base) 115V ODP Blower Motor

Nidec

D13B10N49 Nidec 1/3 hp 1800/1200 RPM 2-Speed 48 Frame (Resilient Base) 115V ODP Blower Motor

(No reviews) Write a Review
$258.75
$231.15
SKU D13B10N49
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/3 HP
RPM 1800
Frame 48
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 6.4/4.0 Amps
Bearings Ball Bearings
Speeds 2-Speed
Service Factor 1.0
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1/3 hp 1800/1200 RPM, 6.4/4.0 amps 115 Volts 60 Hz Split Phase Motor

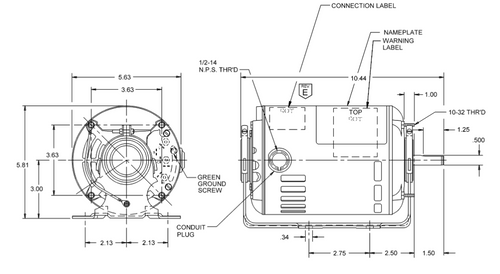

  • NEMA 48 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1/2" Diameter x 1 1/2"
  • Service Factor: 1.0 Overload protection = None
  • Rigid Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

For commercial and industrial ventilation systems. Wiring diagram on motor name plate. ODP = Open Drip-Proof. S055RAS7864022B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/3 HP
RPM 1800
Frame 48
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 6.4/4.0 Amps
Bearings Ball Bearings
Speeds 2-Speed
Service Factor 1.0
Insulation Class Class B
!
