D13B2N4Z9 Nidec 1/3 hp 1800 RPM 48Z Frame (Resilient Base) 1-Speed 115V ODP Blower Motor
D13B2N4Z9 Nidec 1/3 hp 1800 RPM 48Z Frame (Resilient Base) 1-Speed 115V ODP Blower Motor
D13B2N4Z9 Nidec 1/3 hp 1800 RPM 48Z Frame (Resilient Base) 1-Speed 115V ODP Blower Motor
D13B2N4Z9 Nidec 1/3 hp 1800 RPM 48Z Frame (Resilient Base) 1-Speed 115V ODP Blower Motor

Nidec

D13B2N4Z9 Nidec 1/3 hp 1800 RPM 48Z Frame (Resilient Base) 1-Speed 115V ODP Blower Motor

(No reviews) Write a Review
$234.60
$209.29
SKU D13B2N4Z9
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/3 HP
RPM 1800
Frame 48Z
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 7.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.35
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1/3 hp 1800 RPM, 7.0 amps 115 Volts 60 Hz Split Phase Motor
  • NEMA 48Z Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1/2" Diameter x 1 7/8"
  • Service Factor: 1.35 Overload protection = None
  • Rigid Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

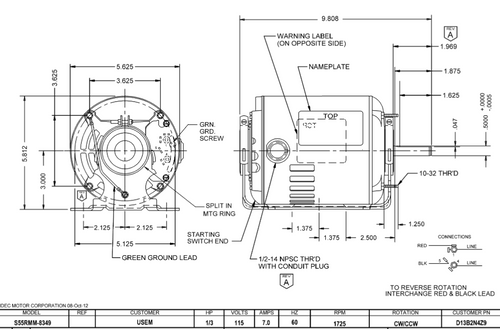

For commercial and industrial ventilation systems. Wiring diagram on motor name plate. ODP = Open Drip-Proof. S055RMM8349012B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/3 HP
RPM 1800
Frame 48Z
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 7.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.35
Insulation Class Class B
!
