sale
Nidec
D16B2N4Z9 Nidec 1/6 hp 1800 RPM 48Z Frame (Resilient Base) 1-Speed 115V ODP Blower Motor
(No reviews)
Write a Review
Write a Review
Nidec
D16B2N4Z9 Nidec 1/6 hp 1800 RPM 48Z Frame (Resilient Base) 1-Speed 115V ODP Blower Motor
$190.90
$159.95
SKU
D16B2N4Z9
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
115V
Horsepower
1/6 HP
RPM
1800
Frame
48Z
Enclosure
ODP
Hertz
60 Hz
Type
Split Phase
Amperage
4.2 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Service Factor
1.35
Insulation Class
Class B
D16B2N4Z9 Nidec 1/6 hp 1800 RPM 48Z Frame (Resilient Base) 1-Speed 115V ODP Blower Motor
This Nidec blower motor is designed for commercial and industrial ventilation systems, providing reliable 1/6 horsepower performance at 1800 RPM. It serves as a direct replacement for motors requiring a 48Z frame with a resilient base and open drip-proof enclosure.
Key Specifications
- Horsepower: 1/6 hp
- RPM: 1800
- Voltage: 115 V
- Amperage: 4.2 A
- Enclosure: Open Drip-Proof (ODP)
- Frame / Diameter: NEMA 48Z Frame, Rolled Steel

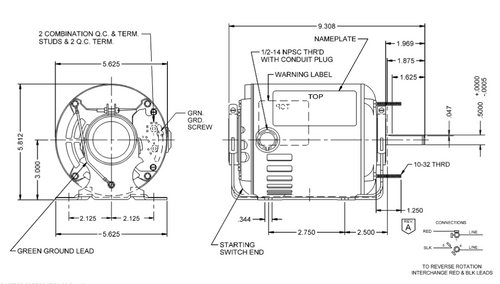

- Shaft Dimensions: 1/2" Diameter x 1 7/8" Length
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a rigid mount and a keyed shaft for secure installation. Constructed with rolled steel and cast aluminum end bells, it includes Class B insulation and supports reversible rotation. The wiring diagram is conveniently located on the motor nameplate for ease of setup.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 115V |
| Horsepower | 1/6 HP |
| RPM | 1800 |
| Frame | 48Z |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Type | Split Phase |
| Amperage | 4.2 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Service Factor | 1.35 |
| Insulation Class | Class B |
