D13B2N4A9 Nidec | 1/3 hp 1725 RPM 1-Speed 115V; 5.6" Blower Motor

SKU:: D13B2N4A9
UPC:: 6.63E+11
Weight:: 17.00 LBS
Width:: 6.00 (in)
Height:: 6.00 (in)
Depth:: 10.00 (in)
Shipping:: Free Shipping
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 115V
Horsepower:: 1/3 HP
RPM:: 1725
Type:: Split Phase
Amperage:: 6.8 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Service Factor:: 1.0
Insulation Class:: Class B
Rotation:: Reversible
Duty:: Continuous Duty

Current Stock:

Was: $171.35

Now: $152.94

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

D13B2N4A9 Nidec 1/3 hp 1725 RPM 1-Speed 115V Blower Motor

This Nidec blower motor is designed for HVAC applications requiring reliable, continuous-duty operation. It serves as a direct replacement for compatible 1/3 horsepower, 1725 RPM motors with a 115V power supply.

Key Specifications

Horsepower: 1/3 hp
RPM: 1725
Voltage: 115V
Amperage: 6.8 amps
Enclosure: Open Drip Proof

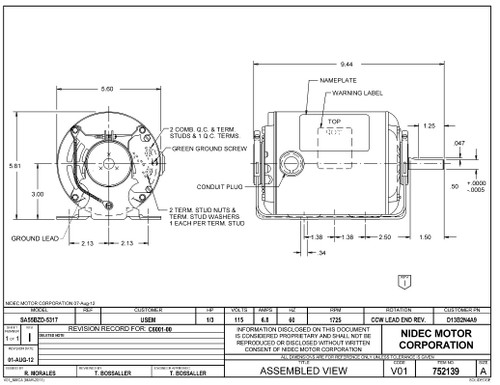

Frame / Diameter: 5.6" diameter, 7.75" motor case length
Shaft Dimensions: 1/2" diameter x 1.5" length; 3" shaft height
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This split-phase motor features a resilient base mount for secure installation and is rated for continuous duty with Class B insulation suitable for 40°C ambient temperatures at 60 Hz. It does not include thermal protection and is engineered for dependable performance in blower applications.
