D20P2H Nidec 20 hp 1800 RPM 256T Frame (Rigid Base) 200V ODP 3-Phase Electric Motor

D20P2H Nidec 20 hp 1800 RPM 256T Frame (Rigid Base) 200V ODP 3-Phase Electric Motor

This Nidec 20 hp electric motor is designed for industrial applications such as pumps, fans, and compressors where minimal contaminants are present. It serves as a reliable replacement motor with a robust 256T rolled steel frame and rigid base mounting for stable operation.

Key Specifications

• Horsepower: 20 hp
• RPM: 1800
• Voltage: 200 V
• Amperage: 54.0 A
• Enclosure: Open Drip Proof (ODP)

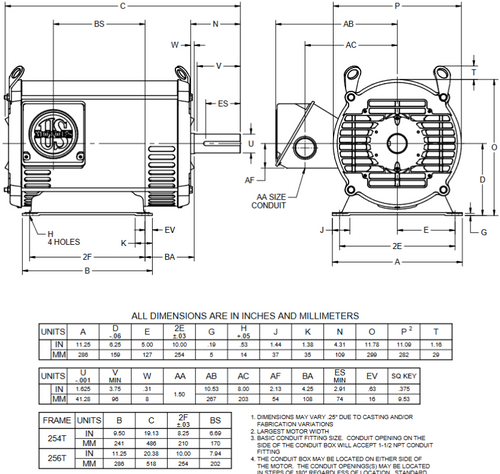

• Frame / Diameter: NEMA 256T Rolled Steel Frame
• Shaft Dimensions: 1 5/8" Diameter x 4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a keyed shaft for secure coupling and is equipped with Class F insulation for enhanced thermal protection. It includes a rigid base mount for straightforward installation and is suitable for three-phase 60 Hz power systems. Wiring diagrams are provided on the motor nameplate to assist with electrical connections.

Warranty

1 Year Manufacturer Warranty
