- 25 hp 3600 RPM, 67.0 amps 200 Volts 60 Hz Three Phase Motor

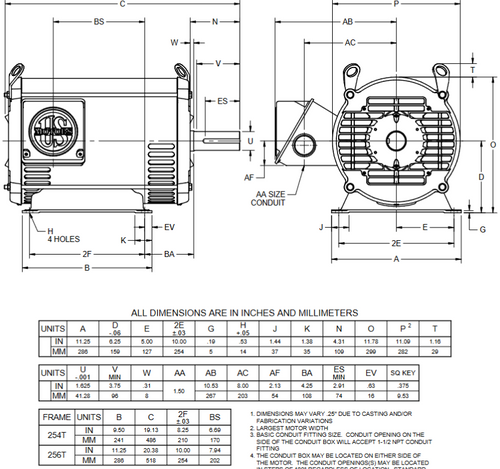

- NEMA 256T Rolled Steel Frame, Keyed Shaft 1 5/8" Diameter x 4"
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. HE69
