D30P2HS Nidec 30 hp 1800 RPM 286TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor
D30P2HS Nidec 30 hp 1800 RPM 286TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor
D30P2HS Nidec 30 hp 1800 RPM 286TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor
D30P2HS Nidec 30 hp 1800 RPM 286TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor

Nidec

D30P2HS Nidec 30 hp 1800 RPM 286TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor

(No reviews) Write a Review
$2,298.85
$2,052.87
SKU D30P2HS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 30 HP
RPM 1800
Phase Three Phase
Frame 286TS
Enclosure ODP
Hertz 60 Hz
Amperage 79.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 30 hp 1800 RPM, 79.0 amps 200 Volts 60 Hz Three Phase Motor

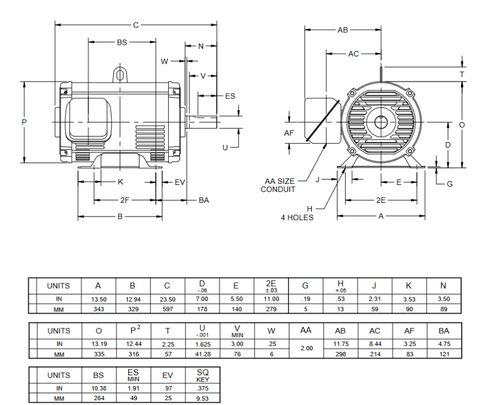

  • NEMA 286TS Rolled Steel Frame, Keyed Shaft 1 5/8" Diameter x 3 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. DC11

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 30 HP
RPM 1800
Phase Three Phase
Frame 286TS
Enclosure ODP
Hertz 60 Hz
Amperage 79.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
