D3C1P18 Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 1-Speed 115/230V ODP Cap Start/Run Motor
D3C1P18 Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 1-Speed 115/230V ODP Cap Start/Run Motor
D3C1P18 Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 1-Speed 115/230V ODP Cap Start/Run Motor
D3C1P18 Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 1-Speed 115/230V ODP Cap Start/Run Motor

Nidec

D3C1P18 Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 1-Speed 115/230V ODP Cap Start/Run Motor

(No reviews) Write a Review
$1,183.35
$1,056.16
SKU D3C1P18
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 3 HP
RPM 3600
Frame 182T
Enclosure ODP
Hertz 60 Hz
Amperage 32.0/16.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3 hp 3600 RPM, 32.0/16.0 amps 115/230 Volts 60 Hz Capacitor Start/Run Motor

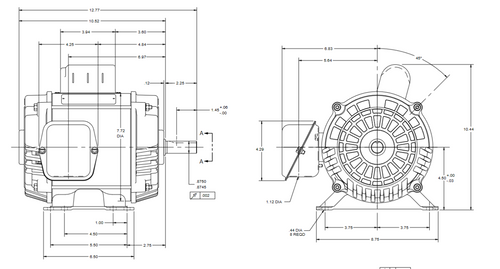

  • NEMA 182T Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 Overload protection = None
  • Resilient Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

For compressor, pumps, and conveyors needing a motor with high starting torque. Wiring diagram on motor name plate. ODP = Open Drip-Proof. AF81

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 3 HP
RPM 3600
Frame 182T
Enclosure ODP
Hertz 60 Hz
Amperage 32.0/16.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
