D40P2G Nidec 40 hp 1800 RPM 324T Frame (Rigid Base) 575V ODP 3-Phase Electric Motor
D40P2G Nidec 40 hp 1800 RPM 324T Frame (Rigid Base) 575V ODP 3-Phase Electric Motor
D40P2G Nidec 40 hp 1800 RPM 324T Frame (Rigid Base) 575V ODP 3-Phase Electric Motor
D40P2G Nidec 40 hp 1800 RPM 324T Frame (Rigid Base) 575V ODP 3-Phase Electric Motor

Nidec

D40P2G Nidec 40 hp 1800 RPM 324T Frame (Rigid Base) 575V ODP 3-Phase Electric Motor

(No reviews) Write a Review
$2,526.55
$2,255.84
SKU D40P2G
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324T
Enclosure ODP
Hertz 60 Hz
Amperage 37 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 40 hp 1800 RPM, 37 amps 575 Volts 60 Hz Three Phase Motor

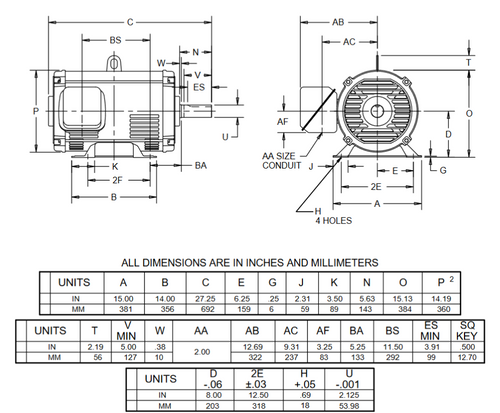

  • NEMA 324T Rolled Steel Frame, Keyed Shaft 2 1/8" Diameter x 5 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. R358

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324T
Enclosure ODP
Hertz 60 Hz
Amperage 37 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
