D40P2HS Nidec 40 hp 1800 RPM 324TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor
D40P2HS Nidec 40 hp 1800 RPM 324TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor
D40P2HS Nidec 40 hp 1800 RPM 324TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor
D40P2HS Nidec 40 hp 1800 RPM 324TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor

Nidec

D40P2HS Nidec 40 hp 1800 RPM 324TS Frame (Rigid Base) 200V ODP 3-Phase Electric Motor

(No reviews) Write a Review
$2,526.55
$2,255.84
SKU D40P2HS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324TS
Enclosure ODP
Hertz 60 Hz
Amperage 105 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 40 hp 1800 RPM, 105 amps 200 Volts 60 Hz Three Phase Motor

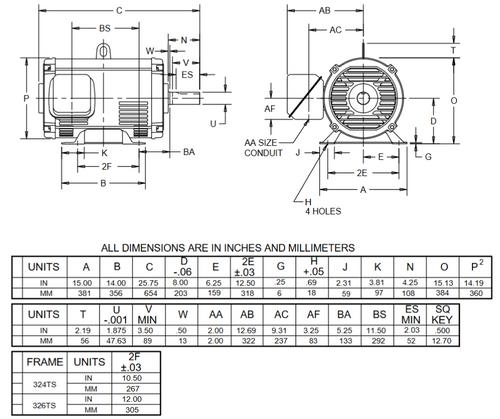

  • NEMA 324TS Rolled Steel Frame, Keyed Shaft 1 7/8" Diameter x 3 3/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. DC31

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 40 HP
RPM 1800
Phase Three Phase
Frame 324TS
Enclosure ODP
Hertz 60 Hz
Amperage 105 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
