Dayton 1TDN4 Blower 49 CFM 3034 RPM 115V 60hz (4C761)

Dayton 1TDN4 Blower 49 CFM 3034 RPM 115V 60Hz (4C761)

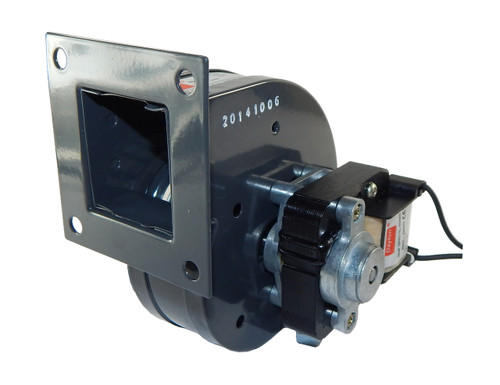

The Dayton 1TDN4 blower is a direct replacement for the discontinued Dayton Model 4C761 and also replaces the Fasco 7002-0091. Designed for reliable airflow applications, this blower delivers 49 CFM at 3034 RPM and operates on 115 volts at 60/50 Hz.

Key Specifications

• RPM: 3034
• Voltage: 115V 60/50Hz
• Amperage: 0.50 amps
• Rotation: Non-reversible
• Bearings: Ball bearings

Product Features & Fitment

This blower supports all-position mounting and features automatic overload protection for enhanced durability. It does not include a power cord or on/off switch and is not recommended for speed control. The outlet flange bolt hole dimensions measure 2.78" x 2.44", and the maximum inlet temperature is 104°F.

Notice: This product is restricted from sale and shipment into Canada.

Cross Reference

• Fasco 7002-0091
