Dayton 1TDP2 Blower 104 CFM 2836 RPM 115V 60hz (4C763)

Dayton 1TDP2 Blower 104 CFM 2836 RPM 115V 60Hz (Replacement for 4C763)

The Dayton 1TDP2 blower is a high-performance replacement for the discontinued 4C763 model, designed for efficient air movement applications. It delivers 104 CFM airflow at 2836 RPM and operates on 115 volts with 60/50 Hz frequency.

Key Specifications

• RPM: 2836
• Voltage: 115V 60/50Hz
• Amperage: 1.25 amps

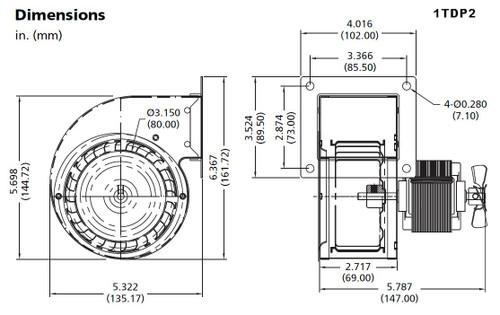

• Wheel Diameter: 3 13/16 inches
• Wheel Width: 1 7/8 inches
• Inlet Diameter: 3 1/8 inches
• Rotation: Non-reversible
• Bearings: Ball bearings

Product Features & Fitment

This blower supports all-position mounting and includes automatic overload protection for enhanced durability. It is not recommended for speed control applications and does not come with a power cord or switch. Please note, this product is restricted from sale and shipment to Canada.

Warranty

• Specification Sheet
