Century Electric Motor
DC114 Marathon 1/2 hp DC Perm. Magnet 56C Frame C Face TENV 1750 RPM (no base) 90V Marathon Motor
(No reviews)
Write a Review
Write a Review
Century Electric Motor
DC114 Marathon 1/2 hp DC Perm. Magnet 56C Frame C Face TENV 1750 RPM (no base) 90V Marathon Motor
$805.69
$682.76
SKU
UDC114
UPC
7.87E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
90V
Horsepower
1/2 HP
RPM
1750
Frame
56C
Enclosure
TENV
Amperage
5.0 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class H
Mounting
C-Face
- 1/2 hp 1750 RPM, 5.0 amps 90 Volts DC current.
- NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0, Overload protection = None
- No Base, Reversible, Ball Bearings, Class H Insulation
- 1 Year Manufacture Warranty

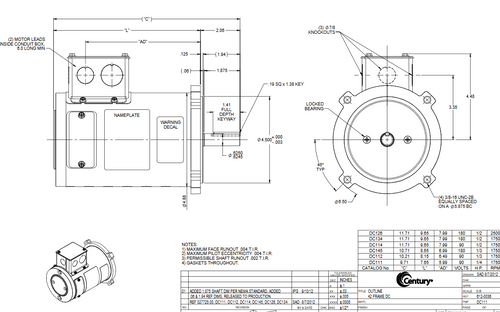

Controller rated DC electric motor with a C-face mount. 20:1 constant torque. Shaft has keyway. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. DC114
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 90V |
| Horsepower | 1/2 HP |
| RPM | 1750 |
| Frame | 56C |
| Enclosure | TENV |
| Amperage | 5.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class H |
| Mounting | C-Face |
