Century Electric Motor

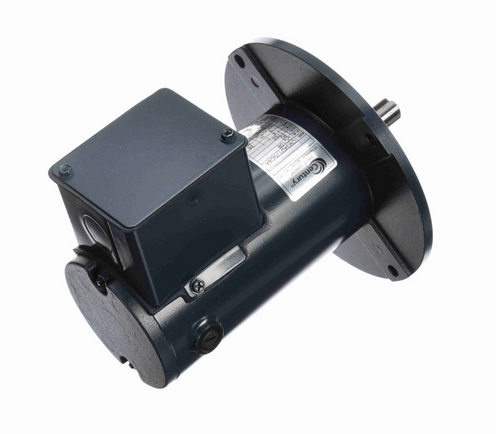

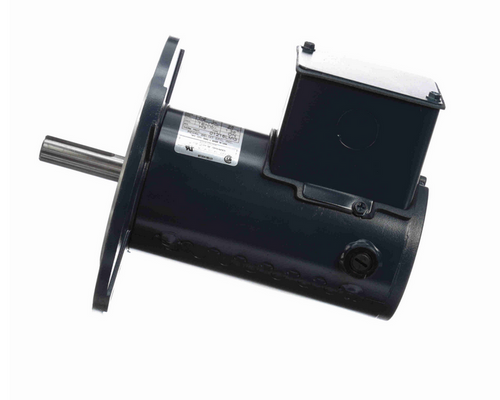

DC109 Century 1/8 hp DC Perm. Magnet C-Face 34 Frame TENV 1750 RPM (no base) 90V Marathon Motor # DC109
(No reviews)
Write a Review
Write a Review
Century Electric Motor
DC109 Century 1/8 hp DC Perm. Magnet C-Face 34 Frame TENV 1750 RPM (no base) 90V Marathon Motor # DC109
$467.48
$396.18
SKU
DC109
UPC
7.87E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
90V
Horsepower
1/8 HP
RPM
1750
Frame
34
Enclosure
TENV
Amperage
1.4 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class H
Mounting
C-Face
- 1/8 hp 1750 RPM, 1.4 amps 90 Volts DC current.
- NEMA 34 frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class H Insulation
- 1 Year Manufacture Warranty
Controller rated DC electric motor with a C-face mount. 20:1 constant torque. Shaft has keyway. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. DC109
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 90V |
| Horsepower | 1/8 HP |
| RPM | 1750 |
| Frame | 34 |
| Enclosure | TENV |
| Amperage | 1.4 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class H |
| Mounting | C-Face |
