DH100S2BF Nidec 100 hp 1800 RPM 230/460V ODP 365T (Rigid Base) 3-Phase Dry Elevator Motor
DH100S2BF Nidec 100 hp 1800 RPM 230/460V ODP 365T (Rigid Base) 3-Phase Dry Elevator Motor
DH100S2BF Nidec 100 hp 1800 RPM 230/460V ODP 365T (Rigid Base) 3-Phase Dry Elevator Motor
DH100S2BF Nidec 100 hp 1800 RPM 230/460V ODP 365T (Rigid Base) 3-Phase Dry Elevator Motor

Nidec

DH100S2BF Nidec 100 hp 1800 RPM 230/460V ODP 365T (Rigid Base) 3-Phase Dry Elevator Motor

(No reviews) Write a Review
$9,970.50
$8,901.81
SKU DH100S2BF
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 100 HP
RPM 1800
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 235/118 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Duty Intermittent Duty
Adding to cart… The item has been added
Description
  • 100 hp 1800 RPM, 235/118 amps 230/460 Volts 60 Hz Three Phase Motor

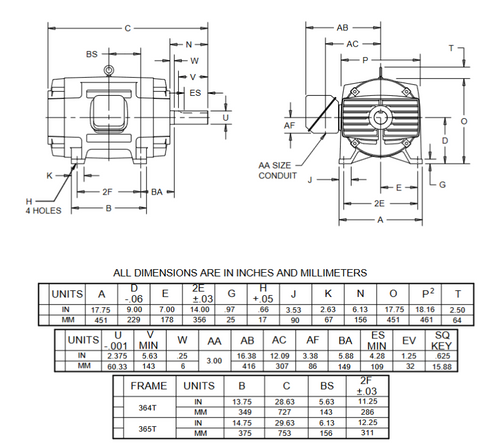

  • NEMA 365T Cast Iron End Bells, Keyed Shaft 2 3/8" Diameter x 6 1/8"
  • Service Factor: 1.0 Overload protection = None, Intermittent Duty
  • Rigid Base Mount, Ball Bearings, Class F Insulation,
  • 1 Year Manufacture Warranty

For hydraulically driven elevators where motor remains dry. 72" lead length. Wiring diagram on motor name plate. ODP = Open Drip Proof. BW64

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 100 HP
RPM 1800
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 235/118 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Duty Intermittent Duty
!
