DH125S2GF Nidec 125 hp 1800 RPM 575V ODP 404T (Rigid Base) 3-Phase Dry Elevator Motor
DH125S2GF Nidec 125 hp 1800 RPM 575V ODP 404T (Rigid Base) 3-Phase Dry Elevator Motor
DH125S2GF Nidec 125 hp 1800 RPM 575V ODP 404T (Rigid Base) 3-Phase Dry Elevator Motor
DH125S2GF Nidec 125 hp 1800 RPM 575V ODP 404T (Rigid Base) 3-Phase Dry Elevator Motor

Nidec

DH125S2GF Nidec 125 hp 1800 RPM 575V ODP 404T (Rigid Base) 3-Phase Dry Elevator Motor

(No reviews) Write a Review
$11,201.00
$10,000.63
SKU DH125S2GF
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 125 HP
RPM 1800
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 144 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Duty Intermittent Duty
Adding to cart… The item has been added
Description
  • 125 hp 1800 RPM, 144 amps 575 Volts 60 Hz Three Phase Motor

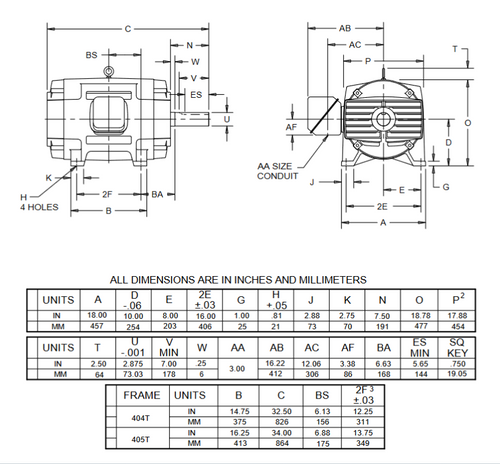

  • NEMA 404T Cast Iron End Bells, Keyed Shaft 2 7/8" Diameter x 7 1/2"
  • Service Factor: 1.0 Overload protection = None, Intermittent Duty
  • Rigid Base Mount, Ball Bearings, Class F Insulation,
  • 1 Year Manufacture Warranty

For hydraulically driven elevators where motor remains dry. 72" lead length. Wiring diagram on motor name plate. ODP = Open Drip Proof. BW67

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 125 HP
RPM 1800
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 144 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Duty Intermittent Duty
!
