DHP1/56 TECO-Westinghouse 1 1/2 HP 1200 RPM 182T 230/460V ODP Cast Iron 3-Phase Motor

SKU:
DHP1/56
Weight:
123.00 LBS
Shipping:
Calculated at Checkout
$374.79
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 1 1/2 hp 1200 RPM, 5.1/2.5 amps 230/460 Volts 60 Hz. Three Phase

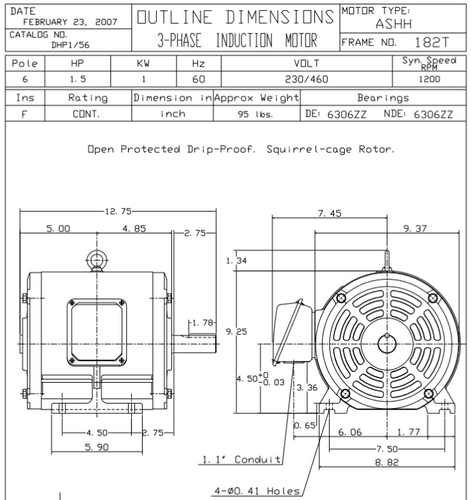

  • NEMA 182T Frame, 2 3/4 x 1 1/8" Dia. Keyed Shaft
  • Cast Iron Frame, Open Drip Proof
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

General purpose motor for use on pumps, fans, and compressors.
