DJ3C1P18M Nidec 3 hp 3600 RPM 1-phase 182JM Frame 115/230V ODP Close-Coupled Pump Motor

DJ3C1P18M Nidec 3 hp 3600 RPM 1-phase 182JM Frame 115/230V ODP Close-Coupled Pump Motor

This Nidec DJ3C1P18M motor is a 3 horsepower, single-phase pump motor designed for direct close-coupled mounting applications. It is suitable for replacing or upgrading existing 182JM frame pump motors operating at 115/230V and 3600 RPM.

Key Specifications

• Horsepower: 3 HP
• RPM: 3600
• Voltage: 115/230V, 60 Hz
• Amperage: 32.0/16.0 amps
• Enclosure: Open Drip Proof (ODP)

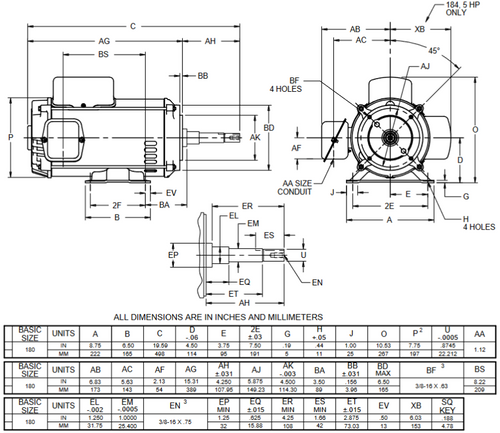

• Frame / Diameter: NEMA 182JM Rolled Steel Frame
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base and C-face mounting configuration, allowing for secure installation in close-coupled pump setups where the pump impeller mounts directly on the motor shaft. It includes a JM steel shaft and is designed with a 1.15 service factor and Class B insulation. Thermal protection is not included.

Warranty

1 Year Manufacturer Warranty
