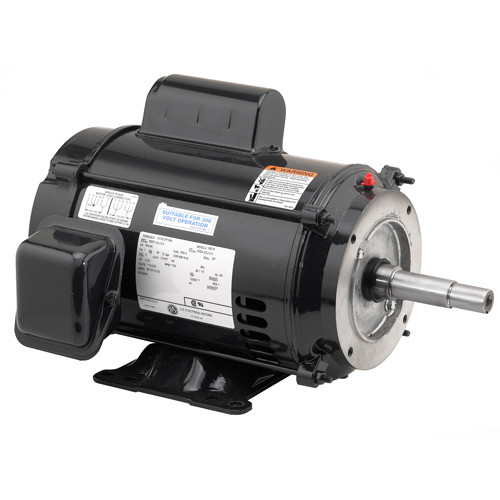

EJM302B Nidec 3 hp 3600 RPM 1-phase 182JM Frame 208-230V ODP Close-Coupled Pump Motor

EJM302B Nidec 3 hp 3600 RPM 1-phase 182JM Frame 208-230V ODP Close-Coupled Pump Motor

This Nidec EJM302B is a 3 horsepower, single-phase pump motor designed for close-coupled pump applications. It replaces compatible 182JM frame motors and is ideal for systems requiring reliable performance at 3600 RPM with 208-230V power supply.

Key Specifications

• Horsepower: 3 HP
• RPM: 3600
• Voltage: 208-230V, 60 Hz
• Amperage: 14.0-13.2 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 182JM Rolled Steel Frame
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base and C-face mounting, allowing for secure installation and compatibility with standard pump setups. The close-coupled design means the pump impeller mounts directly on the motor shaft, simplifying alignment and reducing footprint. The motor includes a JM steel shaft and is built with Class B insulation and a 1.15 service factor. Thermal protection is not included.

Warranty

1 Year Manufacturer Warranty
