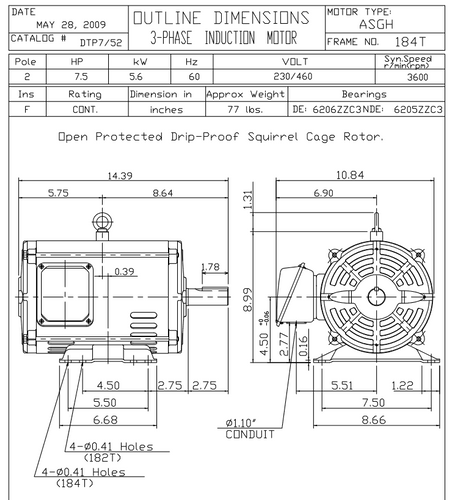

DTP7/52 TECO Westinghouse 7 1/2 hp 3600 RPM 182/184T Frame 230/460V ODP 3-Phase Motor

DTP7/52 TECO Westinghouse 7 1/2 hp 3600 RPM 182/184T Frame 230/460V ODP 3-Phase Motor

The TECO Westinghouse DTP7/52 is a premium NEMA electric motor designed for industrial applications such as fans, blowers, pumps, crushers, compressors, mixers, and conveyors. It offers reliable performance with a 7.5 horsepower rating and compatibility with 230/460V three-phase power supplies.

Key Specifications

• Horsepower: 7 1/2 hp
• RPM: 3600
• Voltage: 230/460V
• Amperage: 17.6/8.8 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 182/184T
• Shaft Dimensions: 1 1/8" Diameter x 2 3/4"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rolled steel frame with a rigid base for stable mounting and easy installation. It includes a keyed shaft for secure coupling and is suitable for inverter use according to NEMA MG-1 Part 31.4.4.2, supporting a variable torque speed range of 20:1 and constant torque range of 10:1. The motor is designed with Class F insulation and does not include thermal overload protection.

Warranty

1 Year Manufacturer Warranty
