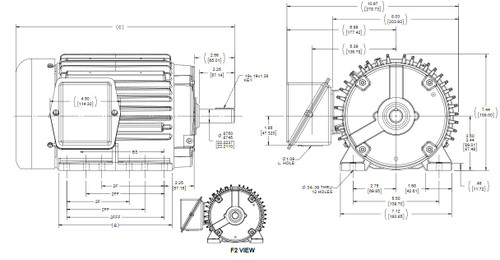

E2204-P Marathon 1 1/2 hp 230/460V 1800 RPM 3-Phase 145T Frame TEFC (rigid base) Motor

E2204-P Marathon 1 1/2 hp 230/460V 1800 RPM 3-Phase 145T Frame TEFC (rigid base) Motor

The Marathon E2204-P is a general-purpose, three-phase electric motor designed for industrial applications requiring reliable performance. It serves as a direct replacement for similar 1 1/2 hp motors with a rigid base mount and is suitable for various machinery without special requirements.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 230/460V
• Amperage: 4.6/2.3 amps
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA Cast Iron 145T frame
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and ball bearings to ensure durability and efficient operation. The wiring diagram is provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
